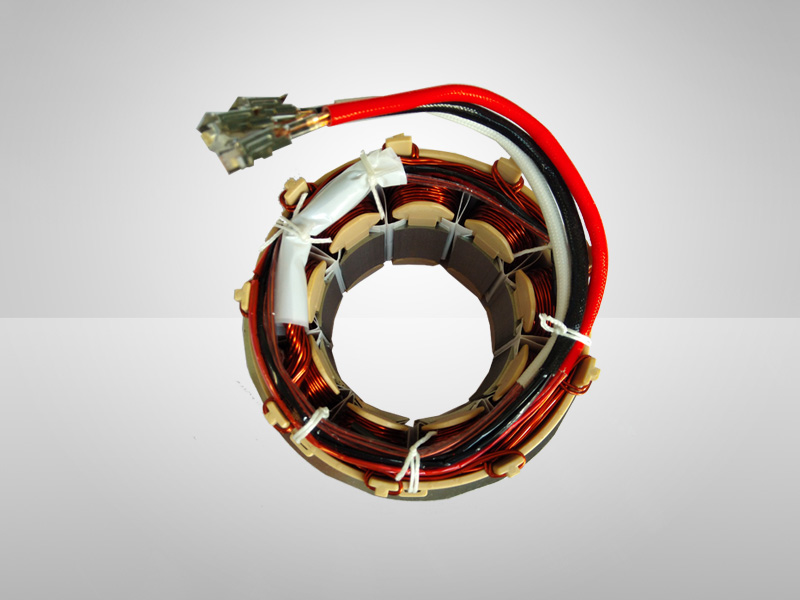

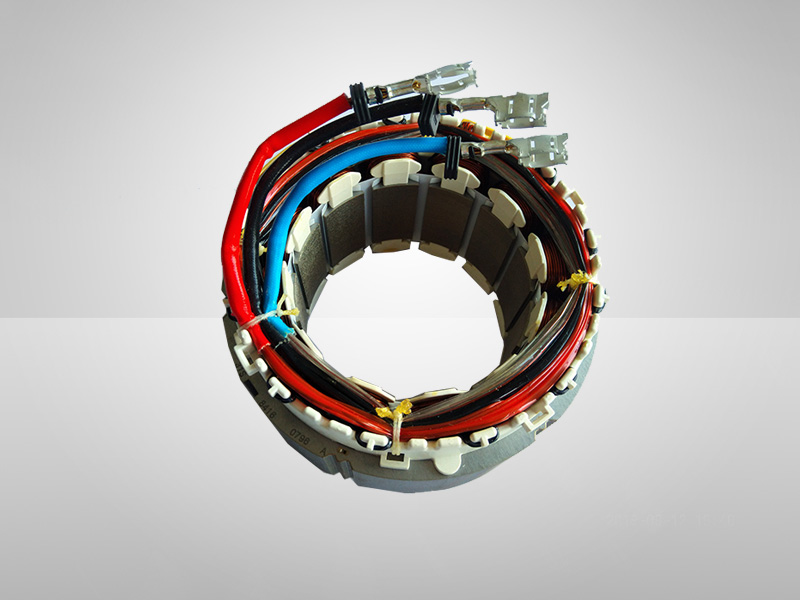

Stator outer diameter：Φ100mm
Rotor inner diameter：Φ19.5mm
Voltage range：24～750V
Speed range：1000～10000rpm
Torque range：0～8Nm
The displacement of the
Corresponding compressor≥34cc
SPEC | EC100-600 | EC100-540 | EC100-320 | EC100-300 | EC100-288 | EC100-144 |
Rated Voltage | 600V | 540V | 320V | 300V | 288V | 144V |
Rated Speed | 6000rpm | 4000rpm | 6000rpm | 7000rpm | 6000rpm | 6000rpm |
Rated Current | 9A | 7A | 14A | 13.5A | 14.5A | 31A |
Stator Outer Diameter | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm |
Rated Torque | 7.5Nm | 4.5Nm | 7.5Nm | 5.5Nm | 5.9Nm | 7.5Nm |
EFF | 91% | 90% | 90% | 90% | 90% | 90% |
Stator Height | 50mm | 38mm | 50mm | 38mm | 50mm | 50mm |
Rated Power | 4.7kw | 1.9kw | 4.7kw | 4.0kw | 3.7kw | 4.7kw |
Insulation Grade | E | E | E | E | E | E |
