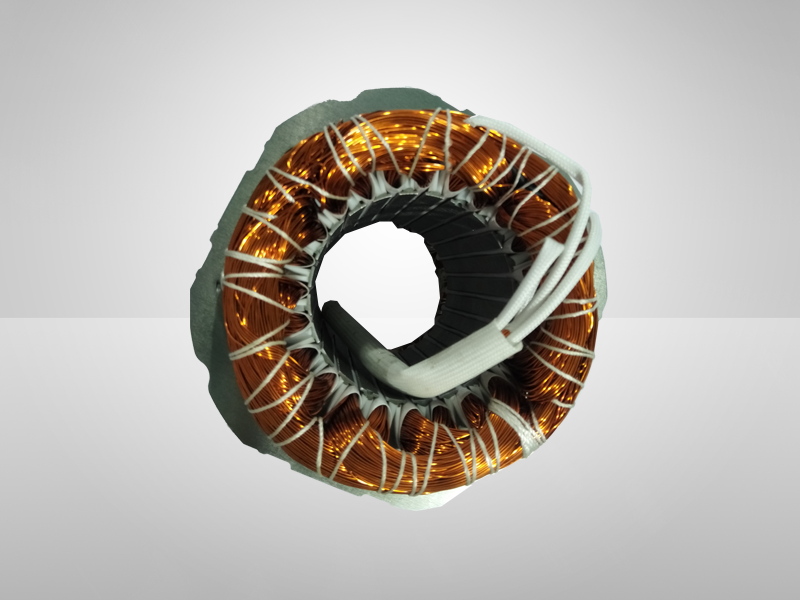

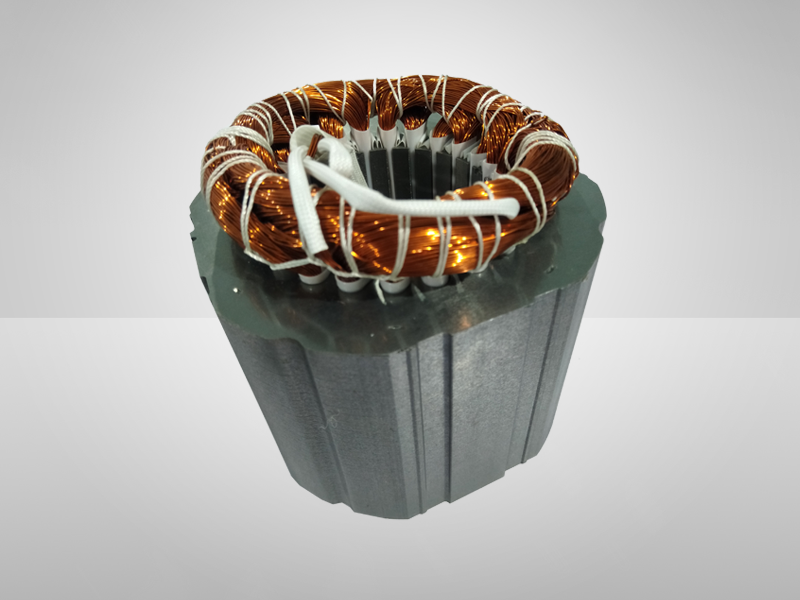

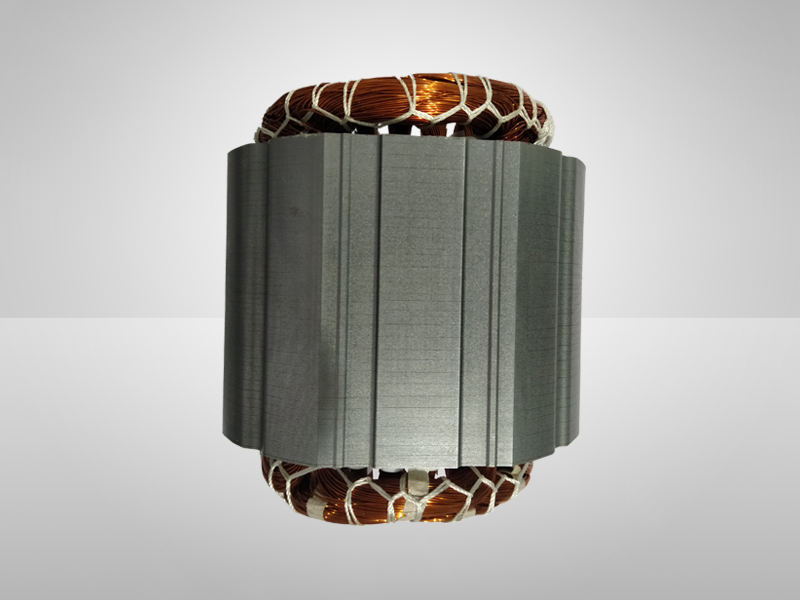

Stator outer diameter：Φ125mm
Rotor inner diameter：Φ20mm
Voltage range：24～750V
Speed range：1000～10000rpm
Torque range：0～22Nm
The displacement of the
Corresponding compressor≥44cc
SPEC | EC125-580 | EC125-510 | EC125-380 | EC125-110 |
Rated Voltage | 580V | 510V | 380V | 110V |
Rated Speed | 4500rpm | 3600rpm | 5000rpm | 3600rpm |
Rated Current | 27A | 11A | 22A | 26A |
Stator Outer Diameter | 125mm | 125mm | 125mm | 125mm |
Rated Torque | 21Nm | 8.5Nm | 17Nm | 8Nm |
EFF | 92% | 92% | 92% | 91% |
Stator Height | 100mm | 75mm | 85mm | 75mm |
Rated Power | 4.7kw | 1.9kw | 4.7kw | 4.0kw |
Insulation Grade | E | E | E | E |
